Your controller reads -15°C. Your product near the doors is -4°C. Both readings are accurate.
The problem isn’t your equipment—it’s where you’re measuring, what you’re measuring, and the temperature variations you cannot see.
Every refrigerated space—from walk-in freezers to courier loadboxes—contains volumes where cold air never reaches. These are the dead zones: stagnation regions where airflow velocity drops to near zero, where heat accumulates undisturbed, and where your products quietly warm while your temperature controller reports success.
This isn’t speculation. Published research from Chungnam National University instrumented refrigerated truck bodies with sensors at multiple positions and found temperature differences exceeding 3°C between boxes at different locations—with bottom-layer boxes consistently warmer than upper layers. A temperature mapping study of an 8-year-old laboratory freezer revealed a 15°C difference between the warmest and coldest regions inside the same unit—while the display showed -79°C.
Your single-point temperature sensor cannot see any of this. It measures a single location—typically the return air entering the evaporator—and reports that one number as if it represents the entire space.
It doesn’t.
The Physics: Why Cold Air Falls Short
Understanding dead zones requires understanding why cold air doesn’t simply fill a refrigerated space uniformly. The answer lies in a fundamental principle of fluid dynamics: the competition between momentum and buoyancy.
When cold air exits your evaporator, it has momentum—velocity pushing it in a particular direction. But cold air is also denser than warm air, which means buoyancy forces constantly pull it downward. The ratio of these two forces determines whether your cold air travels horizontally across the space or plunges to the floor.

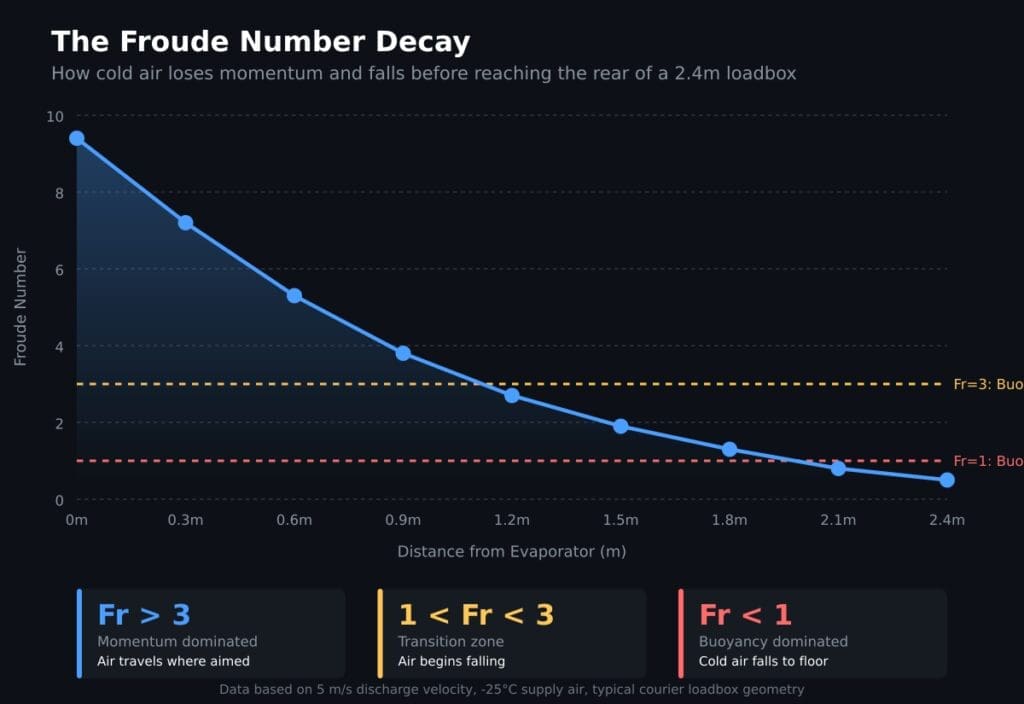

Engineers quantify this balance using the Froude number—a dimensionless ratio of momentum to buoyancy forces. When the Froude number is high (Fr > 3), momentum dominates and cold air travels in the direction it’s aimed. When the Froude number drops below 1, buoyancy takes over and cold air falls regardless of where you point the discharge.
The critical insight: the Froude number decreases with distance from the discharge. Air velocity decays as the jet spreads into the space, while the temperature difference (and thus buoyancy force) remains relatively constant until the air mixes with warmer surroundings.

In a typical 2.4-metre courier loadbox with a roof-mounted evaporator discharging at 5 m/s, the Froude number starts around 9 at the discharge—strongly momentum-dominated. But as velocity decays across the length of the loadbox, it drops below 3 within the first metre and can fall below 1 before reaching the rear doors.
The result: cold air that was supposed to reach the rear of your loadbox has already fallen to the floor, leaving upper rear corners and door-adjacent areas chronically under-cooled.
Three Mechanisms Creating Dead Zones
Dead zones don’t form randomly. Three predictable mechanisms create them in every refrigerated space.
1. Buoyancy Stratification
Cold air sinks. This fundamental physics creates vertical temperature gradients in every refrigerated space. Research on tunnel fire dynamics shows that when the Richardson number (the inverse of Froude number squared) exceeds 2.0, stable stratification develops with clear interfaces between temperature layers.
In refrigerated spaces, this means floor-level temperatures run 2-5°C colder than ceiling temperatures—but the product stacked on the floor experiences heat infiltration from superheated pavement (see our article on urban heat island effects), while product at ceiling height sits in the warmest air layer. Neither extreme matches what your return-air sensor reports.
2. Flow Stagnation
Airflow velocity decays with distance from the discharge. By the time air reaches corners, recesses, and spaces behind product stacks, velocity has dropped to near zero. These stagnation zones receive minimal forced convection—the primary heat transfer mechanism in refrigeration.

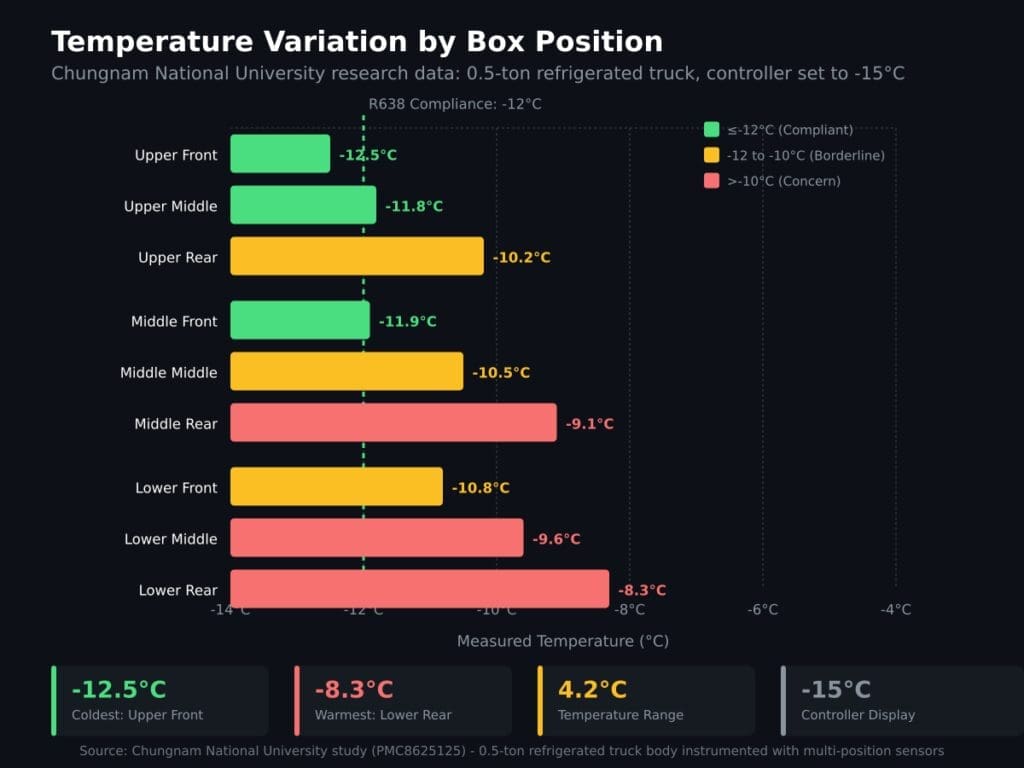

The Chungnam study found that boxes positioned at the front of a refrigerated truck body (closest to the evaporator) cooled to -12°C to -13°C, while boxes at the rear reached only -8°C to -10°C under identical conditions—a 3-4°C gradient from front to rear despite continuous refrigeration operation.

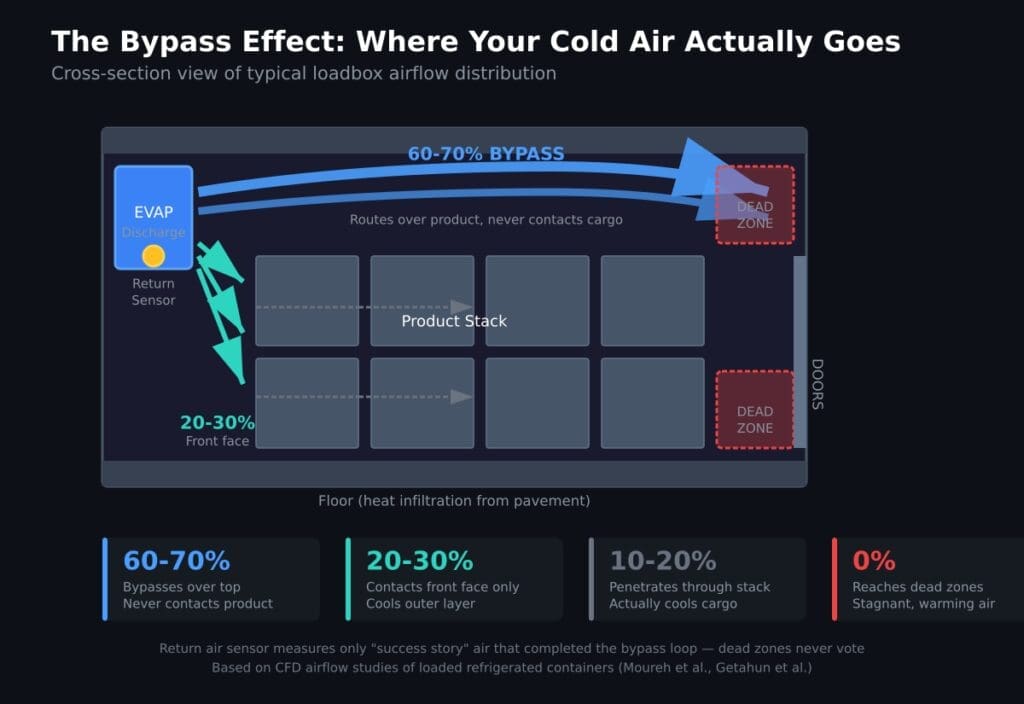

3. The Bypass Effect
Cold air takes the path of least resistance. When product is stacked in a loadbox, airflow preferentially routes over the top of the stack and around the sides rather than through the product mass. Studies of refrigerated containers show 60-70% of airflow may bypass product entirely, circulating through the open space above cargo and returning to the evaporator without ever contacting the goods it’s meant to cool.
This bypass effect means your refrigeration system can work perfectly—maintaining excellent air temperatures in the circulation path—while product in the centre of densely packed pallets warms steadily from accumulated metabolic heat (in produce) or infiltrated heat (in frozen goods).

Our companion article on evaporator chamber airflow details how poor discharge geometry compounds these problems before air even enters the cargo space.
What Research Shows: Measured Temperature Variations
The academic literature on refrigerated transport consistently documents significant temperature variations within refrigerated spaces:
- Chungnam National University (2021): Instrumented a 0.5-ton refrigerated truck with sensors in multiple boxes. Found temperature differences exceeding 3°C between upper and lower layer boxes. Bottom-layer boxes—in contact with the heat-conducting floor—showed consistently higher temperatures than top-layer boxes despite cold air stratification that should have made upper layers warmer. The explanation: floor heat infiltration overwhelmed the stratification effect in the lower layer.
- Temperature Mapping Studies: Laboratory freezer mapping commonly reveals 8-15°C variations between the warmest and coldest zones within a single unit. The warmest areas are typically near the top (due to stratification), near doors (due to infiltration during access), and in corners (due to stagnation). The coldest areas are typically near the evaporator discharge and at floor level in zones with good air circulation.
- Multi-sensor Logistics Research: Studies using wireless temperature loggers throughout palletised loads have found temperature variations of 5-10°C between the surface and centre of pallet stacks, with centre temperatures lagging surface temperatures by 30-60 minutes during temperature recovery after door openings.
The common thread: single-point temperature monitoring systematically misses the warmest locations where product quality is most at risk.
Return Air Sensing: The “Success Story” Problem
Standard refrigeration control uses return air temperature—the air entering the evaporator intake—as the control signal. This seems logical: measure the air returning from the space to determine if more cooling is needed.
But return air temperature has a fundamental bias: it only measures air that successfully completed the circulation loop.
The air entering your evaporator intake is the air that flowed from discharge, through (or over) your cargo space, and back to the return. It’s the air that received cooling, circulated, and came back. It’s the “success story” air.
The dead zones never vote. Air trapped in stagnation pockets, stratified in upper corners, or stalled behind dense product stacks doesn’t make it back to the sensor. The temperature controller never sees those volumes. It makes decisions based only on the air that circulated successfully—air that, by definition, received the cooling effect.
This is why your controller can report -15°C while product in the dead zones warms toward -8°C or warmer. The controller isn’t lying—it’s accurately measuring the air it can see. The problem is what it cannot see.
The Cost of Invisible Temperature Variations
Dead zones aren’t just a physics curiosity—they’re a business liability.
- Product quality degradation: Frozen food stored at -8°C instead of -18°C (R638 regulatory baseline — TFC operates at -15°C: see why) experiences accelerated quality loss. Ice crystal growth damages cellular structure. Enzymatic processes that should be arrested continue at reduced rates. Shelf life specifications assume consistent frozen storage—not the temperature rollercoaster that dead zones create.
- Compliance exposure: R638 regulations require temperature monitoring records that demonstrate compliance. But what do those records prove when they’re based on a sensor positioned in the coldest, best-circulated zone? Your logger shows continuous compliance while product in the dead zones experiences repeated excursions above -12°C.
- Customer complaints: Freezer burn, texture changes, off-flavours—all symptoms of temperature abuse that customers notice even when your records show perfect control. The complaint arrives, you check your logs, everything looks fine. The disconnect erodes trust and damages relationships.
Quantifying the cost requires estimating how often dead zone temperatures exceed acceptable limits and what product value is at risk. For a courier vehicle making 15-30 deliveries daily (30-60 door openings), with 20% of cargo volume in dead zones experiencing 8-12 temperature excursions per day:
- Conservative estimate: 2% of cargo value at risk × R1.3 million annual throughput = R26,000/year per vehicle
- Moderate estimate: 3.3% of cargo value at risk × R1.3 million annual throughput = R43,000/year per vehicle
These figures don’t include compliance investigation costs, customer relationship damage, or the operational time spent investigating complaints that your monitoring data cannot explain.
Multi-Stop Operations: Where Dead Zones Become Catastrophic
- Door opening frequency: Our article on multi-stop thermal loads documents that courier operations experience 30-60 door openings daily versus 2-4 for long-haul transport. Each door opening floods the loadbox with ambient air. The dead zones—already the warmest locations—receive the greatest thermal impact because they’re positioned near the doors and lack the airflow to recover quickly.
- Partial loads: Courier operations rarely run with full, uniformly loaded cargo spaces. Partially loaded vehicles have different airflow patterns than full vehicles. Gaps in loading create new stagnation zones. Product remaining after early-route deliveries may shift position, moving into or out of dead zones unpredictably.
- Mixed delivery windows: Some product loads early and delivers late; other product loads late and delivers immediately. The product with longest exposure sits through maximum door opening cycles, accumulating thermal stress. If that product happens to be positioned in a dead zone, it experiences the worst of both effects.
The research on door opening recovery shows that standard refrigeration sizing doesn’t account for the transient loads from frequent access. Dead zones compound this problem by creating volumes that recover slower than the well-circulated zones where your sensor sits.
What Can Be Done: Mitigation Strategies
Dead zones are physics—you cannot eliminate them entirely. But you can mitigate their impact through better monitoring, better air distribution, and operational practices that account for their existence.
Monitoring: Move Beyond Single-Point Sensing
The minimum viable improvement is adding sensors in known problem areas: near doors, in upper rear corners, at floor level. Modern monitoring systems from providers like Cold Watch support multiple sensors per unit, allowing spatial temperature mapping rather than single-point monitoring.
Temperature mapping studies—placing sensors throughout a space during typical operations—reveal where dead zones exist in your specific equipment and loading patterns. This knowledge enables targeted interventions rather than generic solutions.
Air Distribution: Engineering the Airflow Path
Better evaporator discharge design can extend the throw distance before buoyancy dominates. Higher discharge velocities maintain momentum longer. Ducted discharge systems can direct cold air to specific zones. T-bar floor channels in refrigerated vehicles create return air paths that pull circulation through product rather than over it.
These modifications cost money—but so do the dead zones they address. The engineering economics depend on your specific operation: cargo value, route profiles, existing equipment capabilities, and regulatory exposure.
Operational Practices: Working With Physics
Loading practices can minimise dead zone exposure. Position highest-value or most temperature-sensitive cargo in well-circulated zones. Leave air gaps for circulation rather than packing densely to maximise payload. Orient cartons to allow airflow through product rather than forcing air to bypass.
In our holding freezers, we use open-sided crates rather than solid containers. Product stored in wire mesh crates receives air circulation from all directions, reducing the stagnation effect that solid containers create. This doesn’t eliminate dead zones in the freezer space itself, but it prevents creating additional dead zones within the storage containers.
Pre-cooling practices also matter. Product that enters a refrigerated space at target temperature requires only temperature maintenance, not temperature reduction. Dead zones can maintain temperature far more effectively than they can achieve temperature pull-down. Our article on product temperature at loading addresses why incoming product temperature is critical.
What If We Stopped Fighting Gravity?
Everything described above—the Froude number decay, the buoyancy stratification, the bypass effect, the dead zones—shares a common root cause: conventional refrigeration design fights physics instead of working with it.
The standard design philosophy, unchanged since mechanical refrigeration became practical for transport in the early 20th century, discharges cold air horizontally from roof-mounted evaporators and expects it to travel across the cargo space before returning. This forces cold, dense air to fight its natural tendency to sink. We’ve detailed the predictable results: momentum decays, buoyancy wins, cold air falls short, dead zones form.
The first mechanical refrigeration system for trucks appeared in 1938, patented by Frederick McKinley Jones in 1940. By 1949, Jones and his business partner had built a multimillion-dollar company around this invention. The fundamental design—roof-mounted evaporator, horizontal discharge, floor-level return—has remained essentially unchanged for 85 years.
But what if we inverted the approach?
The Physics-Based Alternative
Principle: Work with buoyancy, not against it.
Design:
- Return air intake at ceiling level — where warm air naturally accumulates
- Cold air discharge at floor level — through floor channels, a plenum system, or angled downward deflectors
- Let gravity distribute the cold air across the floor, then let natural convection drive the return path as warmed air rises
In this configuration, the Froude number analysis changes fundamentally. With ceiling discharge, low Froude number means cold air falls prematurely—a failure. With floor discharge, low Froude number means cold air stays at floor level and spreads laterally—exactly what you want.
The “success story air” problem disappears. When your return intake is at ceiling level, you’re harvesting the warmest air in the space—the air that has genuinely absorbed heat and needs cooling. You’re no longer measuring the air that took the easy bypass path; you’re measuring the air that completed the thermal work.
Dead zones relocate and shrink. Upper rear corners—the chronic problem areas in conventional design—become part of the return air path. Warm air is actively pulled from those zones rather than left to stagnate. The circuit works with stratification rather than against it.
The Research Supports This
This isn’t speculation. The academic literature consistently points toward floor-level air distribution as superior for temperature uniformity.
Ho, Rosario, and Rahman (2010) conducted CFD simulations of refrigerated warehouse airflow and found that “better cooling effectiveness and uniformity of temperature in the refrigerated space could be achieved by using higher blowing air velocity and/or locating the cooling units lower and closer toward the arrays of product packages.” Lower evaporator positioning improved both cooling speed and temperature uniformity.
Getahun et al. (2017, 2018, 2021) demonstrated that T-bar floors—which create floor-level air distribution channels—”significantly improved the uniformity of airflow distribution” compared to flat floors. Adding vent holes to the bottom of packaging reduced vertical airflow resistance by 75% and cooling time by 37%. The mechanism: floor-level air supply enables vertical airflow through product rather than horizontal bypass over product.
Recent CFD studies on cargo arrangement (2025) found that when fan pressure increases and airflow reaches the rear of the container, “the cooling speed in the containers is significantly improved, especially in the region of the last cargo box.” The challenge is getting cold air to reach the rear—floor-level distribution solves this by letting gravity assist rather than resist.
The physics isn’t controversial—it’s basic thermodynamics that any first-year engineering student can verify. Cold air sinks. Warm air rises. Design that works with these forces requires less energy and produces more uniform results than design that fights them.
Why Doesn’t Everyone Do This?
- Condensate drainage: Evaporators generate water during defrost cycles. Roof-mounted units drain easily via gravity. Floor-mounted systems require pumps or sumps—added complexity that manufacturers would rather avoid.
- Cargo space: Floor-level discharge systems (T-bar channels, plenum floors) consume cargo volume. Roof-mounted units use space above the cargo envelope that’s often unusable anyway. Body builders optimise for maximum advertised cargo capacity, not thermal performance.
- Tooling and training: Manufacturers have decades of tooling, installation templates, and trained technicians built around the current design. Change means investment. Why invest when the current approach sells?
- Market position: The dominant players—Thermo King, Carrier Transicold, and their competitors—own the market with existing designs. Why would they invest in redesigning products when customers keep buying what’s available? Innovation threatens established revenue streams; incremental improvements preserve them.
The Economics Say Otherwise
Here’s the uncomfortable truth: the physics-correct design is actually cheaper to install.
Current installations require fabricating and installing vertical return air ducting from floor level up to roof-mounted evaporators. Eliminating this ducting saves R1,500-R2,500 in materials and 2-3 hours of installation time. You’d add simple ceiling grilles (the evaporator is already at roof level) and downward discharge deflectors for R500-R800. Net result: lower installation cost and better performance.
The efficiency improvements translate directly to fuel savings. Conservative estimates suggest 20-25% improvement in refrigeration efficiency from eliminating the buoyancy battle—your compressor no longer wastes energy fighting gravity. Over 50,000 km annually, even a 20% improvement saves approximately 300 litres of diesel—R6,600 per vehicle per year at current prices.
Over a 10-year vehicle lifetime across a five-vehicle fleet: R330,000 in fuel savings alone, plus the installation cost savings, plus the reduced product losses from eliminated dead zones, plus the compliance benefits from more uniform temperature control.
The payback period for retrofitting existing vehicles? We’ve calculated 7-9 months in our design analysis—faster than almost any other fleet efficiency investment.
The Questions Nobody Asks
The transport refrigeration industry has achieved remarkable reliability. Modern units run for years with minimal maintenance. Compressors are efficient, refrigerants are (somewhat) improved, and controls are sophisticated.
But the fundamental airflow geometry hasn’t been challenged since the technology’s inception. We’ve optimised the components while preserving a flawed architecture.
If you were designing a refrigerated vehicle from first principles today—knowing everything we know about thermodynamics, buoyancy, stratification, and airflow—would you choose to discharge cold air horizontally from the ceiling and fight gravity for the entire length of the cargo space?
Of course you wouldn’t. You’d work with physics, not against it.
Yet that’s precisely what every “industry standard” specification demands. Equipment suppliers publish sizing guides based on steady-state assumptions that ignore multi-stop door opening loads. Body builders install evaporators where they’ve always installed them. Operators accept dead zones as inevitable because “that’s just how these systems work.”
We’ve detailed in our article on the 90-degree delusion how evaporator chamber design ignores basic airflow physics. We’ve shown in our technical formulas reference how altitude correction factors are systematically ignored in South African specifications. We’ve documented how timer-based defrost systems waste R25,000+ annually per vehicle because demand-based alternatives would reduce supplier revenue.
The pattern is consistent: the industry optimises for manufacturer convenience and initial sale price, not operator total cost of ownership or actual thermal performance.
The dead zones in your freezer aren’t a mystery. They’re a predictable consequence of design choices made decades ago, perpetuated by industry inertia, and defended by market incumbents who have no incentive to disrupt profitable product lines.
Physics doesn’t care about market share. Buoyancy doesn’t respect “industry standard.” Cold air will sink whether or not Thermo King’s product design accounts for it.
The questions need to be asked. The alternatives need to be presented. If operators don’t challenge the assumptions baked into every refrigerated vehicle specification, the manufacturers certainly won’t.
The Fundamental Problem: You Cannot Control What You Cannot Measure
Refrigeration control systems make decisions based on sensor input. If the sensor only sees the coldest, best-circulated zone in your space, the control system optimises for that zone while remaining blind to everywhere else.
The controller reports success. The product reports failure.
Adding more sensors extends your spatial coverage—but even comprehensive air temperature monitoring has limits. Air temperature is not product temperature. Air can recover from a door opening in minutes while product core temperature lags by hours. That’s a separate problem with a separate solution.
The dead zones in your freezer are real, predictable, and measurable. They exist because of fundamental physics that no amount of wishful thinking can override. The question isn’t whether they exist—it’s whether you’re accounting for them in your operations, your monitoring, and your quality assurance.
Your temperature sensor isn’t lying. It’s telling you the truth about the tiny slice of your refrigerated space it can see. The lie is pretending that slice represents the whole.
