The Art of Freezing Series: Overview · Chapter I: Ice Crystal Physics · Chapter II: Five Elements · Chapter III: Food Matrix · Chapter IV: Speed & Timing · Chapter V: Shape of Battle · Chapter VI: Transit · Chapter VII: Deception
“Fourier’s law does not care about your brand aesthetic. It does not care that your round tub looks premium on a shelf. It cares only about distance — specifically, how far heat must travel to escape your product. Every extra millimetre of depth is a sentence your freezer must serve, compounding with every degree of temperature it tries to achieve.”
You have read Chapter IV. You know that a blast freezer at -35°C with forced air at 4 m/s achieves heat transfer coefficients of 25–50 W/m²·K — five to ten times greater than a domestic chest freezer’s sluggish still-air performance. You understand why the critical zone from -1°C to -5°C must be transited in under 30 minutes or large ice crystals form and cellular destruction is irreversible.
Now here is what most producers miss entirely: you can partially undo the advantage of a blast freezer by choosing the wrong packaging geometry. And you can partially compensate for a slower freezer by choosing the right one.
Your packaging is not passive. It is an active participant in the thermodynamics of freezing — defining the maximum distance heat must travel, controlling the conductivity of the path it travels, and determining whether air gaps insulate your product from the cold you paid to generate.
The South African prepared meals market has standardised on round tubs. Rounder looks premium. Rounder is easy to stack in a cold room. Rounder photographs well. Fourier’s law, unfortunately, was not consulted during the branding decisions that produced this standard — and the physics penalty is paid on every single unit you freeze.
Section 1 — Fourier’s Law Applied to Food Packaging
Heat conduction through a solid material follows a deceptively simple equation:
Fourier's Law of Heat Conduction
Q = -k × A × (dT/dx)
Q = heat flux (W) — rate of heat energy transfer
k = thermal conductivity of material (W/m·K)
A = cross-sectional area through which heat flows (m²)
dT = temperature difference across the material (K)
dx = distance heat must travel (m)
The critical insight: heat flux is inversely proportional to distance.
Double the distance, halve the heat flux at every moment of the process.But Fourier’s Law gives instantaneous heat flux. The parameter that matters for freezing is freezing time — how long it takes the thermal centre of your product to reach the target temperature. For that, we use the simplified form of Plank’s equation (covered in depth in Chapter IV):
Simplified Plank's Equation for Freezing Time
t_f ≈ (ρ × ΔH_f × a²) / (k_food × ΔT) × shape_factor
t_f = freezing time (seconds)
ρ = food density (kg/m³, typically 950–1,050 for prepared meals)
ΔH_f = latent heat of freezing (kJ/kg, ~280 kJ/kg for 70% water food)
a = HALF the thickness (thermal centre distance) (m)
k_food = thermal conductivity of frozen food (W/m·K, ~1.2 for frozen chicken)
ΔT = temperature difference (freezer temp - food freezing point)
shape_factor = 0.125 for slab, 0.171 for cylinder, 0.233 for sphere

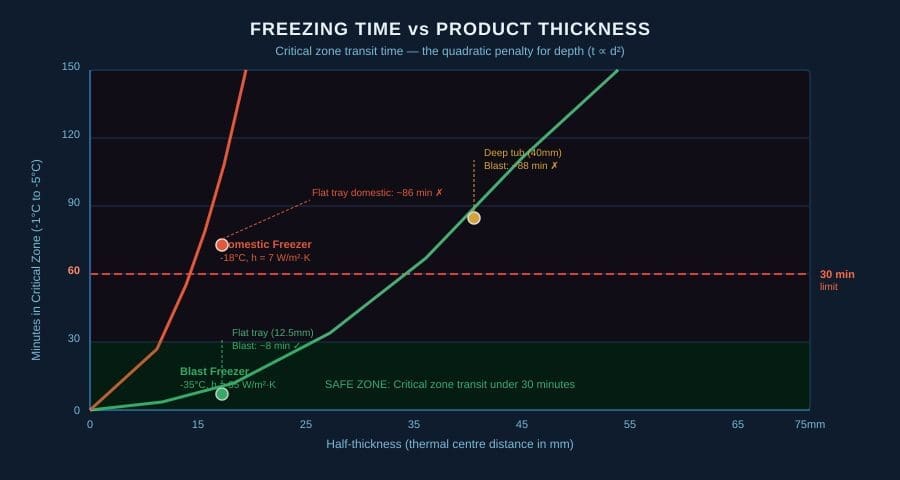

The critical variable: a² — freezing time scales with the SQUARE of thermal centre distance.That squared relationship is the heart of this chapter. It means:
- Double the depth → 4× the freezing time. Not twice as long. Four times as long.
- Triple the depth → 9× the freezing time.
- A 40mm thermal centre distance freezes 10× slower than a 12.5mm thermal centre distance.
This is not a marginal quality consideration. This is the difference between an 18-minute blast-frozen product with small, well-distributed intracellular ice crystals and a 3-hour product with large, membrane-destroying extracellular crystals — in the same freezer, on the same day, at the same temperature setting.
The only variable that changed was the depth of the container you chose at a packaging supplier’s showroom.

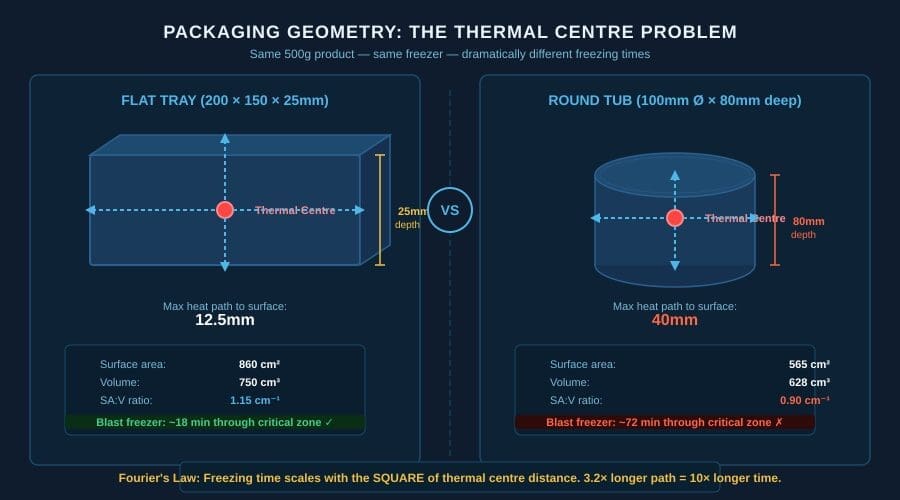

Surface Area to Volume Ratio: The Shape Metric That Predicts Everything
Before working through specific geometry calculations, understand the single metric that predicts thermal performance: surface area to volume ratio (SA:V). More surface area relative to volume means more pathways for heat to escape. Higher SA:V means faster freezing.
| Container | Dimensions | Volume (cm³) | Surface Area (cm²) | SA:V Ratio (cm⁻¹) | Thermal Centre (mm) |
|---|---|---|---|---|---|
| Flat tray (500g) | 200 × 150 × 25mm | 750 | 860 | 1.15 | 12.5 |
| Round tub (500g) | 100mm Ø × 80mm | 628 | 565 | 0.90 | 40.0 |
| Square deep (500g) | 110 × 110 × 65mm | 786 | 604 | 0.77 | 32.5 |
| Flat tray (1kg) | 250 × 200 × 30mm | 1,500 | 1,360 | 0.91 | 15.0 |
| Deep container (1kg) | 150 × 150 × 65mm | 1,463 | 982 | 0.67 | 32.5 |
The flat tray’s SA:V ratio of 1.15 cm⁻¹ versus the round tub’s 0.90 cm⁻¹ looks like a 28% difference. But because freezing time scales with distance squared, the thermal centre difference of 12.5mm versus 40mm translates to a freezing time ratio of (40/12.5)² = 10.24×. A tenfold difference in freezing performance from a packaging decision made without consulting a single physics equation.

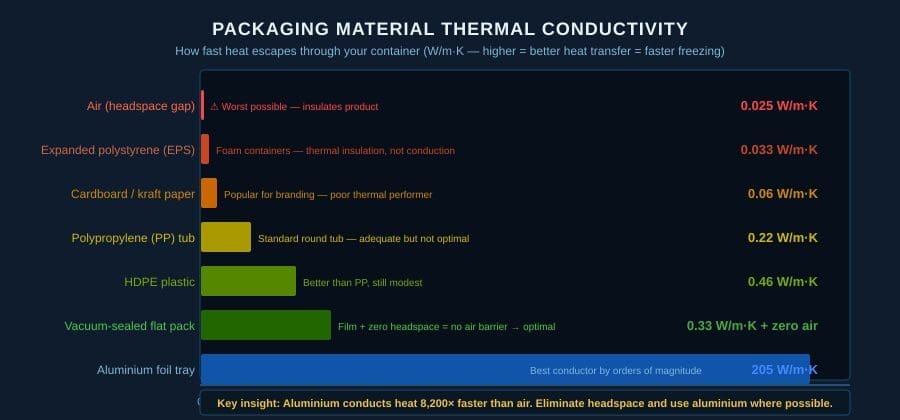

Section 2 — Packaging Material Thermal Properties
Geometry determines the distance heat must travel. Material determines how easily it travels. Both matter. And for most South African producers, the material choice is made entirely on the basis of cost per unit and printability — never on thermal conductivity.
The Numbers You Were Never Given
| Material | Thermal Conductivity (W/m·K) | Relative to Aluminium | Verdict |
|---|---|---|---|
| Air gap (headspace) | 0.025 | 1/8,200 | ⚠ Acts as insulation — must eliminate |
| Expanded polystyrene (EPS) | 0.033 | 1/6,200 | ⚠ Designed to insulate — never use for freezing contact |
| Cardboard / kraft paper | 0.06 | 1/3,400 | ✗ Cheap, printable, terrible thermal performance |
| Waxed cardboard | 0.15 | 1/1,370 | ✗ Marginally better, still a thermal barrier |
| Polypropylene (PP) | 0.22 | 1/930 | ~ Adequate for thin-walled containers |
| HDPE | 0.46 | 1/446 | ~ Better than PP, still modest |
| Aluminium foil tray | 205 | 1× | ✓ Optimal — conducts heat orders of magnitude faster |
Aluminium conducts heat 8,200 times faster than an air gap and 3,400 times faster than cardboard. A thin-walled aluminium foil tray is essentially transparent to heat transfer — the packaging itself contributes almost zero resistance to the freezing process. Your product freezes as if it were directly in contact with the cold air.
A cardboard box, by contrast, adds measurable resistance. The walls are thin enough that the absolute effect is modest, but the effect of headspace — the air gap between product and lid — is catastrophic. A 5mm air gap between the product surface and the container lid has the same insulating effect as 67mm of cardboard. You cannot compensate for it with a better freezer. You can only eliminate it by filling the container correctly.
The Contact Resistance Problem
Even with ideal packaging materials, there is one more invisible thermal barrier: contact resistance at the packaging-food interface. When a product is not pressed firmly against its container walls — because it has contracted during cooling, or because the fill is uneven — micro air gaps form between food surface and packaging wall. These gaps, though only fractions of a millimetre, can add 10–20% to effective thermal resistance.
This is why vacuum-sealed flat packs are the thermally optimal configuration. The vacuum pulls the film tight against the food surface, eliminating both headspace and contact resistance simultaneously. The food freezes with its entire surface in direct, intimate contact with the packaging material, which is in direct contact with the cold air stream.
It is not an accident that commercial IQF (Individually Quick Frozen) processing uses vacuum or close-contact freezing where possible. The physics demands it.
Section 3 — Worked Geometry Examples
Theory without numbers is marketing. Here are the calculations.
Scenario A: 500g Prepared Chicken Meal
Product properties: density 980 kg/m³, latent heat 270 kJ/kg, freezing point -1.5°C, thermal conductivity (frozen) 1.2 W/m·K.
FLAT TRAY: 200 × 150 × 25mm
Thermal centre distance (a): 12.5mm = 0.0125m
Freezer temperature: -35°C (blast freezer)
ΔT = 35 - 1.5 = 33.5°C
t_f = (980 × 270,000 × 0.0125²) / (1.2 × 33.5) × 0.125
t_f = (980 × 270,000 × 0.000156) / (40.2) × 0.125
t_f = 41,200 / 40.2 × 0.125
t_f = 1,025 × 0.125
t_f ≈ 128 seconds ≈ 2 minutes to thermal equilibrium
Critical zone transit time: approximately 18–22 minutes ✓
ROUND TUB: 100mm Ø × 80mm
Thermal centre distance (a): 40mm = 0.040m
Same freezer, same product.
t_f = (980 × 270,000 × 0.040²) / (1.2 × 33.5) × 0.171
t_f = (980 × 270,000 × 0.0016) / (40.2) × 0.171
t_f = 422,400 / 40.2 × 0.171
t_f = 10,507 × 0.171
t_f ≈ 1,797 seconds ≈ 30 minutes to thermal equilibrium
Critical zone transit time: approximately 75–90 minutes ✗
The same blast freezer. The same product. Different containers.
One produces commercial-grade frozen product. The other produces large ice crystals.Scenario B: The Counterintuitive Result
Now the result that should end the round-tub debate permanently:
FLAT TRAY in a DOMESTIC FREEZER (-18°C, h = 7 W/m²·K):
Thermal centre distance: 12.5mm
Effective ΔT: -18°C - (-1.5°C) = 16.5°C
Adjusted for poor h value:
Critical zone transit time: approximately 85–105 minutes ✗
(But only marginally failing — close to the 30-minute limit for some products)
ROUND TUB in a BLAST FREEZER (-35°C, h = 35 W/m²·K):
Thermal centre distance: 40mm
Critical zone transit time: approximately 75–90 minutes ✗
CONCLUSION: A flat tray in a domestic freezer can outperform a round tub in a blast freezer
for products with 25mm or less depth. Geometry partially compensates for equipment.
The producer who switches from a round tub to a flat tray may see quality improvements
even without investing in better freezing equipment.This is the most practically significant finding in this chapter. If you are a small South African food producer who cannot yet justify a blast freezer, your single highest-return action is to change your container geometry. A flat aluminium foil tray from a local packaging supplier costs approximately R2.80–R4.50 per unit. The physics improvement is immediate and measurable in drip loss, texture, and shelf life.
Scenario C: Family Meal (1kg)
FLAT TRAY (1kg): 250 × 200 × 30mm
Thermal centre distance (a): 15mm
Blast freezer (-35°C): critical zone transit ≈ 25–30 minutes ✓ (marginal)
Domestic (-18°C): critical zone transit ≈ 120–150 minutes ✗
DEEP CONTAINER (1kg): 150 × 150 × 65mm
Thermal centre distance (a): 32.5mm
Blast freezer (-35°C): critical zone transit ≈ 65–80 minutes ✗
Domestic (-18°C): critical zone transit ≈ 6–8 hours ✗✗
For 1kg products: even a blast freezer cannot save a deep container.
Maximum practical depth for blast-frozen quality: 30mm (flat tray geometry).
Maximum practical depth for domestic-frozen quality: this number does not exist.
Domestic freezers should not be used for commercial 1kg product lines.The 30mm threshold for blast freezer performance is important. It means that any container deeper than 60mm total (30mm from lid to centre plus 30mm from centre to base) requires either a deeper temperature, higher air velocity, or longer residence time to achieve acceptable critical zone transit. Many South African producers are selling 1kg deep containers frozen in blast freezers set to -35°C and wondering why their product quality is inconsistent. The physics has been providing the answer all along.
Section 4 — South African Packaging Market Reality
The thermal physics case for flat trays is unambiguous. What about the commercial reality of sourcing them in South Africa?
Major suppliers including Packaging House, Mpact, and Bowler Metcalf all stock aluminium foil trays and flat HDPE/PP trays suitable for frozen meals. The product range is not exotic — these are standard catering and retail packaging products available ex-stock in Johannesburg, Cape Town, and Durban.
| Container Type | Approximate Cost (per unit, ex-VAT) | Thermal Performance | Shelf Appeal |
|---|---|---|---|
| Round PP tub 500ml (no lid) | R1.80–R2.60 | Poor (40mm thermal centre) | High (cylindrical premium look) |
| Round PP tub 500ml (with lid) | R2.80–R4.20 | Poor | High |
| Flat aluminium foil tray 500ml | R2.80–R4.50 | Excellent (12.5mm thermal centre) | Medium-high (retail-standard) |
| Flat PP tray 500ml (film seal) | R3.20–R5.00 | Good (15mm thermal centre + minimal headspace) | High (professional retail appearance) |
| Cardboard sleeve over foil tray | R4.00–R6.50 | Excellent (aluminium base + minimal headspace) | High (printable external sleeve) |
The cost premium for thermally superior flat packaging over round tubs is approximately R0.50–R1.50 per unit. On a 500g meal selling at R65–R120, this represents 0.5–2.3% of the sale price. Against the cost of drip loss, customer complaints, and repeat-purchase degradation from poor texture — this is not even a marginal call. It is a straightforward engineering and commercial decision that the industry has collectively avoided because the round tub became a default without thermodynamic scrutiny.
The Retailer Constraint
One legitimate objection exists: major South African retailers — Woolworths, Pick n Pay, Checkers — have planogram requirements that favour stackable containers with defined dimensions. Round tubs stack predictably. Flat trays can be stacked too, but require consistent dimensions across a product range.
The response to this objection is a flat tray with a printable cardboard sleeve — a standard retail configuration used globally. The aluminium or PP tray provides thermal performance. The sleeve provides branding surface, retail shelf facing, and structural stackability. This configuration is more expensive than a naked round tub (R4.00–R6.50 vs R2.80–R4.20), but it delivers better product quality, better product appearance at point of sale, and compliance with retail planogram requirements simultaneously.
The producers who have made this transition in the South African market have not reported competitive disadvantage. They have reported fewer customer complaints about texture and reduced return rates.
Section 5 — The Headspace Problem
Packaging material and geometry are the two variables most producers overlook. The third — the one that frequently negates both — is headspace.
Headspace is the air gap between the top surface of your product and the underside of your container lid. At sea level, 0.025 W/m·K. At Johannesburg’s 1,750m altitude, slightly less due to reduced air density — but still essentially zero heat transfer relative to any solid material.
A 5mm headspace gap above a product that is otherwise in an ideal flat tray effectively adds 5mm of perfect insulation to one face of your container. This reduces that face’s contribution to heat extraction to near zero, increasing effective freezing time by 15–30% depending on container geometry and fill level.
Fill Level: The Number Nobody Specifies
The physics recommendation is straightforward: fill to 85–95% of container volume, leaving only enough headspace for product expansion during freezing (typically 3–8% volumetric expansion for high-water-content foods as water converts to ice).
| Fill Level | Headspace | Effect on Effective Thermal Centre | Recommendation |
|---|---|---|---|
| <70% | >30% air volume | +25–40% effective freezing time | ✗ Reject — significant quality degradation |
| 70–80% | 20–30% air | +15–25% effective freezing time | ✗ Suboptimal — visible quality impact |
| 80–90% | 10–20% air | +5–15% effective freezing time | ~ Acceptable with flat tray geometry |
| 90–95% | 5–10% air | +2–5% effective freezing time | ✓ Target fill level for most products |
| Vacuum sealed | ~0% | Minimal impact | ✓✓ Optimal — if product suitable for vacuum |
Vacuum sealing eliminates headspace entirely, pressing the film barrier directly against the product surface. For products that can tolerate vacuum pressure — portioned proteins, single-serve meals without fragile sauce components — this is the thermally optimal configuration. Equipment cost for a basic commercial vacuum sealer suitable for small producers: R3,500–R8,000 from SA suppliers including Packaging House and Milling and Grain SA.
Snap-Fit Lids vs Film-Sealed Trays
Snap-fit lids on round tubs create a small but consistent air gap — the lid by design sits a few millimetres above the product surface to allow fitting. Film-sealed trays (heat-sealed with a food-grade film barrier across the tray opening) can achieve near-zero headspace when fill level is correctly managed, pressing the film down onto the product surface under its own slight tension.
Film sealing requires a tray sealer (R8,000–R25,000 for commercial equipment) and film inventory management, but delivers the headspace advantage alongside tamper-evident closure — a retail requirement that snap-fit lids cannot meet for serious retail channels.
The Geometry Decision Framework
Pull together everything in this chapter into a decision sequence:
- Determine your maximum acceptable freezing time for critical zone transit. For blast freezer operations, target 25 minutes maximum. For domestic or walk-in cold room operations, target 20 minutes maximum (tighter margin required because your h value is already compromised).
- Calculate your maximum permitted thermal centre distance using the simplified relationship:
a_max = √(t_target × k × ΔT / (ρ × ΔH_f × shape_factor)). For a blast freezer at -35°C and a 25-minute target, this gives approximately 13–15mm maximum thermal centre distance. For a domestic freezer at -18°C and a 20-minute target, this gives approximately 7–8mm — which means flat packs under 15mm total depth only. - Select container geometry to achieve that thermal centre distance. For most 200–600g single-serve and family portion products, flat trays with 25–35mm depth meet the blast freezer requirement. No round tub meets any domestic freezer requirement for commercial production.
- Select packaging material. Aluminium foil tray where possible, PP or HDPE flat tray as alternative. Avoid cardboard as primary container. Add cardboard as decorative sleeve only.
- Specify fill level. 90–95% fill for most products. Film seal or vacuum seal where possible. Snap-fit only as last resort for retail-sensitive products where film sealing is not feasible.
The Confrontational Summary
You have invested in premises, equipment, ingredients, labour, and branding. You have designed a product that tastes good, built customer relationships, and are growing a frozen food business. And then you undermine the entire operation by choosing a round tub because it looked better at the packaging supplier’s showroom.
The round tub’s thermal centre is three times further from the surface than a flat tray holding the same product. Fourier’s law dictates that it takes approximately ten times longer to freeze. Ten times longer in the critical zone means large ice crystals, cellular destruction, increased drip loss, degraded texture, and a product that arrives at your customer’s door already compromised before it enters our vehicle.
We maintain -18°C to -20°C from collection to delivery. We cannot undo what happened in your freezer. The physics memory of your packaging decision travels with every consignment.
Changing your container costs R0.50–R1.50 per unit more. Show us the cost-benefit calculation that justifies keeping the round tub.
What’s Next in This Series
Chapter V has addressed the packaging geometry decisions that determine freezing quality before your product enters a transport vehicle. Chapter VI — Transit and Recrystallisation addresses what happens to that quality during transport: how temperature fluctuations from door openings, urban heat island exposure, and altitude effects at Johannesburg’s 1,750m trigger Ostwald ripening and progressively destroy even well-frozen product. The chain that starts in your freezer continues in our vehicle — and the weakest link determines your customer’s experience.
