“In war, speed is everything. In freezing, it is the difference between preservation and destruction. There is no such thing as ‘fast enough’ with a domestic freezer.”
You’ve read Chapter I. You know what ice crystals do to food at the microscopic level — the nucleation, the critical zone from -1°C to -5°C, the cellular destruction from large extracellular crystals. You understand why the first 30 minutes in a freezer determine whether your product survives the journey.
You’ve read Chapter II and Chapter III. You understand that different food components freeze differently, and that a composite meal presents multiple simultaneous thermal challenges.
Now the question becomes: how fast, exactly, does your freezer extract heat from your product? And is it fast enough to pass through the critical zone before large ice crystals form?
Most South African food producers cannot answer that question. They bought a freezer. They set a temperature. They assume “frozen” means “frozen correctly.” It doesn’t.
The Variable That Actually Controls Freezing Speed
Freezing speed is not about temperature alone. It is the rate at which thermal energy is extracted from your product — governed by three variables you can control, and one constant you cannot.
The three controllable variables are: freezer air temperature, air velocity past the product surface, and product thickness (geometry). The interaction between them determines your convective heat transfer coefficient — the single number that predicts whether your freezer passes or fails the 30-minute critical zone test.
Newton's Law of Cooling — the governing equation
Q = h × A × (T_surface - T_air)
Q = heat transfer rate (W)
h = convective heat transfer coefficient (W/m²·K)
A = surface area in contact with cold air (m²)
T_surface = product surface temperature (K)
T_air = freezer air temperature (K)
The coefficient h is the critical variable.
It is determined by air velocity and fluid properties.

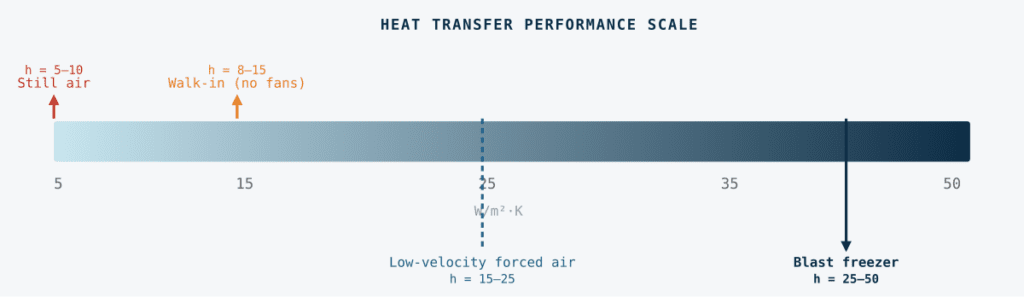

Change h, and you change everything.What h Values Mean in Practice
| Equipment Type | Air Velocity | h Value (W/m²·K) | Critical Zone Transit |
|---|---|---|---|
| Domestic chest freezer (still air) | <0.1 m/s | 5–10 | 2–4 hours ✗ |
| Walk-in coldroom (natural convection) | 0.1–0.3 m/s | 8–15 | 1–3 hours ✗ |
| Cabinet blast freezer | 2–3 m/s | 20–35 | 15–25 minutes ✓ |
| Tunnel/spiral blast freezer | 3–5 m/s | 25–50 | 8–18 minutes ✓ |
A domestic chest freezer relies on still air. Natural convection moves air slowly around the product. Typical h value: 5–10 W/m²·K. A commercial blast freezer forces air at 3–5 m/s across product surfaces at -35°C to -40°C. Typical h value: 25–50 W/m²·K. That is a 5× to 10× difference in heat extraction rate — before you even account for the temperature differential advantage.
Still air in a domestic freezer is like cooling your body in calm water at 10°C — uncomfortable but slow. A blast freezer is cold water rushing past at speed. The water temperature matters less than the movement. Stagnant cold loses to moving cold every time.
The Boundary Layer Problem
Still air around a product surface creates a thermal boundary layer — a thin zone of warmer air that insulates the product surface from the colder bulk air. This boundary layer is the real enemy of fast freezing. In still air at -18°C, boundary layer thickness can reach 5–10mm, and its effective insulation can add the equivalent of 5–8°C to the temperature the product “feels” at its surface.
This matters enormously. The boundary layer is what makes still-air freezing slow regardless of ambient temperature. A -18°C still-air domestic freezer still has a significant boundary layer around your product. A -35°C blast freezer at 4 m/s eliminates it.
Plank’s Equation: Predicting Critical Zone Transit Time
Food scientists use Plank’s equation to estimate the time required for a product to pass through the critical zone. It is not a perfect model — real foods have complex geometries and variable thermal properties — but it provides the benchmark that exposes the domestic freezer’s fundamental inadequacy.
Plank's Equation (simplified for slab geometry)
t = (ρ × L_f) / (T_f - T_a) × (P×a/h + R×a²/k)
t = freezing time (seconds)
ρ = density of food (kg/m³, typically 900–1100 for meat/meals)
L_f = latent heat of freezing (J/kg, ~334,000 × water fraction)
T_f = initial freezing point of food (°C, typically -1 to -2°C)
T_a = freezer air temperature (°C)
P,R = geometric constants (slab: P=1/2, R=1/8)
a = half-thickness of product (m)
h = convective heat transfer coefficient (W/m²·K)
k = thermal conductivity of frozen product (W/m·K, ~1.0–1.8)Worked Example: 25mm Chicken Breast
A boneless chicken breast portion, 25mm thick at its thickest point, starting from refrigerator temperature (4°C).
Product parameters
------------------
Density: 1050 kg/m³
Water fraction: 0.75 → Latent heat = 0.75 × 334,000 = 250,500 J/kg
Freezing point: -1.5°C
Half-thickness: 0.0125 m
k (frozen): 1.2 W/m·K
BLAST FREEZER — T_a = -35°C, h = 35 W/m²·K
--------------------------------------------
ΔT = -1.5 - (-35) = 33.5 K
t = (1050 × 250,500 / 33.5) × ((0.5×0.0125)/35 + (0.125×0.0125²)/1.2)
t = 7,851,493 × 0.0001948
RESULT: ≈ 1,529 seconds = 25 minutes ✓ PASS
DOMESTIC FREEZER — T_a = -18°C, h = 8 W/m²·K
-----------------------------------------------
ΔT = -1.5 - (-18) = 16.5 K
t = (1050 × 250,500 / 16.5) × ((0.5×0.0125)/8 + (0.125×0.0125²)/1.2)
t = 15,943,182 × 0.0007975
RESULT: ≈ 12,714 seconds = 3.5 hours ✗ FAIL✓ Blast Freezer
25 minutes through critical zone
Ice crystals: 1–12 µm
Drip loss on thaw: 1–2%
Cellular damage: minimal
✗ Domestic Freezer
3.5 hours through critical zone
Ice crystals: 100–1,000 µm
Drip loss on thaw: 5–10%
Cellular damage: extensive
The Composite Meal: A More Complex Failure
A 500g prepared meal — chicken, rice, sauce, vegetables — in a standard 150mm × 120mm × 60mm container. This is the product most home-based and small commercial producers in South Africa freeze in domestic equipment.
Composite meal parameters
--------------------------
Effective half-thickness: 30mm (60mm total depth ÷ 2)
Average density: 1020 kg/m³
Average water fraction: 0.72 → Latent heat = 240,480 J/kg
Average freezing point: -2°C (depressed by salt, sugars)
Average k (frozen): 0.9 W/m·K
BLAST FREEZER — flat tray, h = 35
-----------------------------------
ΔT = -2 - (-35) = 33°C
t = (1020 × 240,480 / 33) × ((0.5×0.03)/35 + (0.125×0.03²)/0.9)
RESULT: ≈ 69 minutes ✓ PASS (with flat tray packaging)
DOMESTIC FREEZER — deep container, h = 7
------------------------------------------
ΔT = -2 - (-18) = 16°C
t = (1020 × 240,480 / 16) × ((0.5×0.03)/7 + (0.125×0.03²)/0.9)
RESULT: ≈ 9.6 hours ✗ FAIL (catastrophic)The geometry difference alone changes outcomes significantly — even before equipment selection. See Chapter V: The Shape of Battle for full packaging geometry analysis.
Why Domestic Freezers Cannot Be Upgraded Into Blast Freezers
This is not a design flaw. Domestic freezers are designed for domestic use: storing already-frozen food, occasionally adding small quantities at near-frozen temperatures, cycling the compressor infrequently to maintain -18°C in a lightly loaded, thermally stable box.
Commercial food production is the opposite of this. You are adding large quantities of warm food (freshly cooked meals at 60–80°C, fresh proteins at 4°C) in bulk, regularly, expecting rapid pulldown to -18°C. The domestic freezer was never designed for this duty cycle.
Domestic compressors are sized for light, intermittent duty. Add 20 kg of freshly cooked meals at 65°C to a domestic chest freezer and watch the compressor run continuously at maximum duty while internal temperatures climb above -10°C for hours — damaging existing inventory, creating large ice crystals in the new product, and stressing the compressor into early failure.
The Hidden Damage: When you add warm product to a domestic freezer that already contains frozen inventory, you are warming your existing frozen stock. Temperature excursions above -12°C trigger recrystallisation in previously well-frozen product. Every batch of warm product added degrades everything already in the freezer. This is cumulative damage that is invisible until thaw.
The Walk-In Coldroom Misconception
Many producers upgrade from a domestic chest freezer to a walk-in coldroom at -18°C and consider this a blast freezer solution. It isn’t. A walk-in room at -18°C with standard refrigeration but no dedicated high-velocity fans is simply a large domestic freezer. The h value for natural convection in a walk-in is 8–15 W/m²·K — nowhere near the 25–50 W/m²·K of forced-air blast equipment.
Temperature is not the variable. Airflow is the variable. This is the single most important insight in Chapter IV. Write it on the wall of your production facility.
South African Equipment Landscape: What Exists and What It Costs
At Johannesburg’s 1,750m altitude, refrigeration equipment loses approximately 18% of its rated capacity due to reduced air density. Specify 20–25% higher than sea-level ratings for Gauteng installations. See the Technical Formulas Reference for altitude correction calculations.
| Equipment Type | Air Temp | h (W/m²·K) | SA Cost Range | Suitable For |
|---|---|---|---|---|
| Cabinet blast freezer (small) | -35°C to -40°C | 20–35 | R45,000–R120,000 | Up to 50kg/batch. Home-based and small commercial producers. |
| Reach-in blast freezer | -35°C to -40°C | 25–40 | R80,000–R180,000 | 50–200kg/batch. Medium commercial kitchens. |
| Blast freeze tunnel | -35°C to -45°C | 30–55 | R350,000–R900,000 | Continuous production. 500kg+/hour. |
| Spiral blast freezer | -35°C to -45°C | 25–50 | R1,000,000+ | High-volume industrial production. |

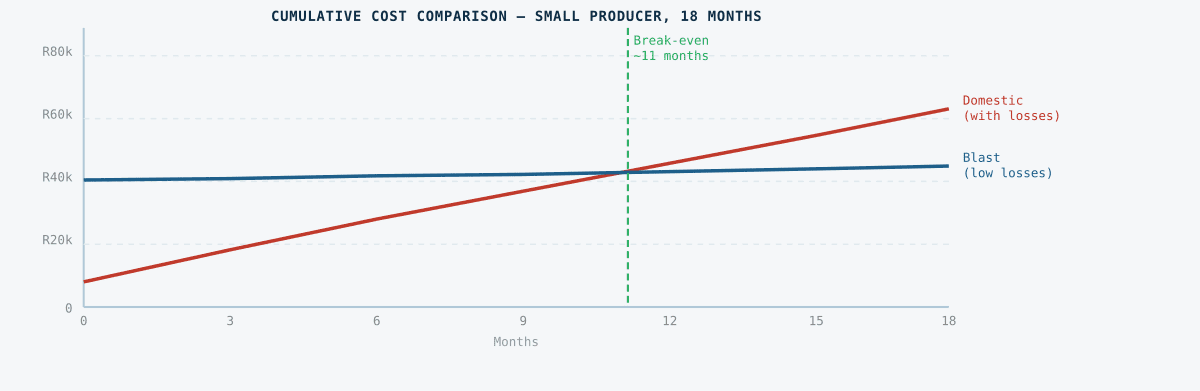

The Economics: When Does a Blast Freezer Pay for Itself?
The R45,000 cabinet blast freezer is the entry point for most small producers. The question is not whether you can afford it — it is whether you can afford not to have it.
| Cost Category | Monthly Estimate | Annual |
|---|---|---|
| Customer returns (texture/quality complaints) | R500–R2,000 | R6,000–R24,000 |
| Product write-offs (overcrowded freezer damage) | R300–R1,500 | R3,600–R18,000 |
| Redelivery costs from failed orders | R200–R800 | R2,400–R9,600 |
| Lost repeat customers (unquantified) | R500–R2,000 | R6,000–R24,000 |
| Total direct visible costs | R1,500–R6,300 | R18,000–R75,600 |
A R45,000 blast freezer at the low end of this cost range pays for itself in 7–30 months. At the high end of quality failure costs, payback is under a year. This is not a capital investment argument. It is a cost-avoidance argument.
The blast freezer does not cost R45,000. It costs the difference between R45,000 and the cumulative losses from inadequate freezing. For most producers operating at meaningful scale, that difference is negative within 18 months.
What Our Vehicles Receive and What We Can Do About It
Our trucks maintain -12°C to -15°C with mechanical refrigeration. We monitor product temperatures, not just air temperatures. We run 15–40 door openings per route through Gauteng summers at 35°C ambient, 60°C pavement. We have engineered our systems to handle the thermal loads that multi-stop urban delivery creates.
What we cannot do is reverse ice crystal damage. We receive product. We protect it during transit. If it arrives already compromised by slow freezing, our -12°C to -15°C operating range preserves the damaged state with precision. We do not make bad freezing better. We deliver the physics verdict your freezer already rendered.
Temperature compliance is not quality compliance. -18°C tells you the product is frozen. It tells you nothing about crystal structure, drip loss potential, or whether the critical zone was transited in 20 minutes or 3 hours. Producers and regulators who equate temperature compliance with quality compliance are measuring the wrong variable.
Summary: The Physics Verdict
- Freezing speed is governed by h, not just temperature. Convective heat transfer coefficient ranges from 5–10 W/m²·K (still air) to 25–50 W/m²·K (blast freezer). This 5–10× difference determines whether the critical zone is transited in minutes or hours.
- Domestic freezers cannot blast-freeze regardless of temperature setting. Still air, small compressors, and no forced convection make rapid pulldown physically impossible.
- Walk-in coldrooms at -18°C are not blast freezers. Without dedicated high-velocity air circulation, h values remain at 8–15 W/m²·K — insufficient for rapid critical zone transit.
- Altitude matters at Johannesburg’s 1,750m. Specify blast freeze equipment 20–25% above sea-level ratings to account for reduced condenser performance.
- The ROI calculation works. R45,000 against R18,000–R75,600 in annual quality failure costs. The physics makes the business case.
- We cannot fix what your freezer breaks. Professional transport preserves the quality state of your product. Invest in the freezer that deserves professional transport.
This chapter is part of The Art of Freezing series — a comprehensive technical examination of freezing science applied to South African food production and transport.
Prerequisites: Chapter I — Ice Crystal Physics · Chapter II — The Five Elements · Chapter III — The Food Matrix
Next: Chapter V — The Shape of Battle: Packaging Geometry — how container dimensions control freezing quality, and why flat packs freeze 4× faster than deep tubs by mathematical necessity.
All formulas in this article are documented in the Technical Formulas Reference.
